  R107

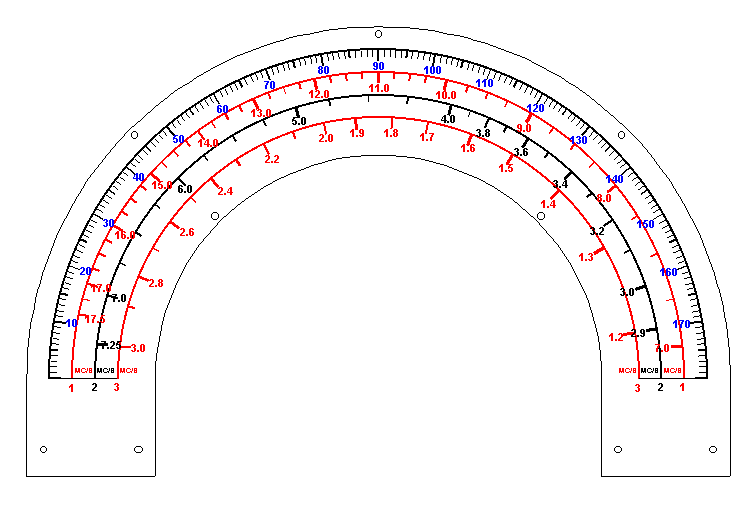

2004 september 22 I got an R107 receiver from a friend. As the dial was not very clear anymore and the material had shrunk over the years, I decided to make a new dial. In case you have the same problem, download the dial.doc and print it 1:1. You will then have a paper dial that should fit exactly.
right-click to download dial.doc
Circuit Diagram (360,757 bytes)
Some articles (866,753 bytes) (nl)
See also VMARS Manuals for the R107 receiver and more of these great instruments.

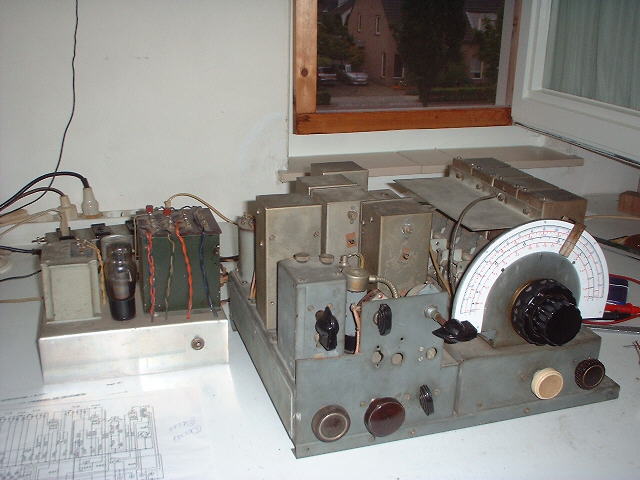

The photos show my R107. It is not complete but it works!
